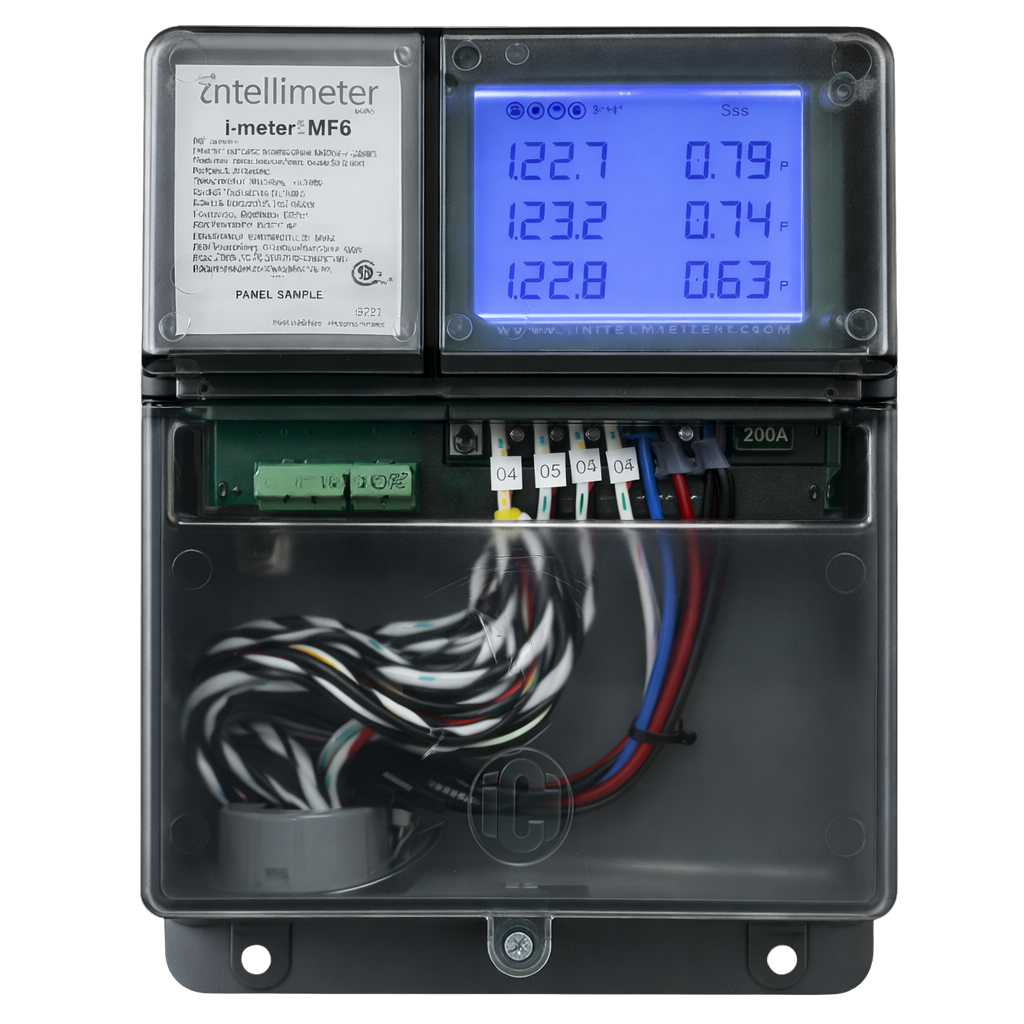

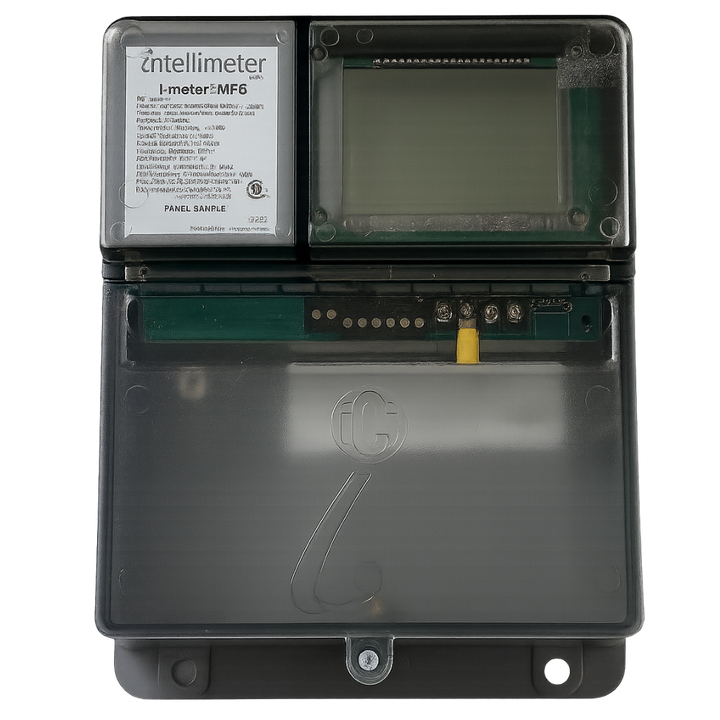

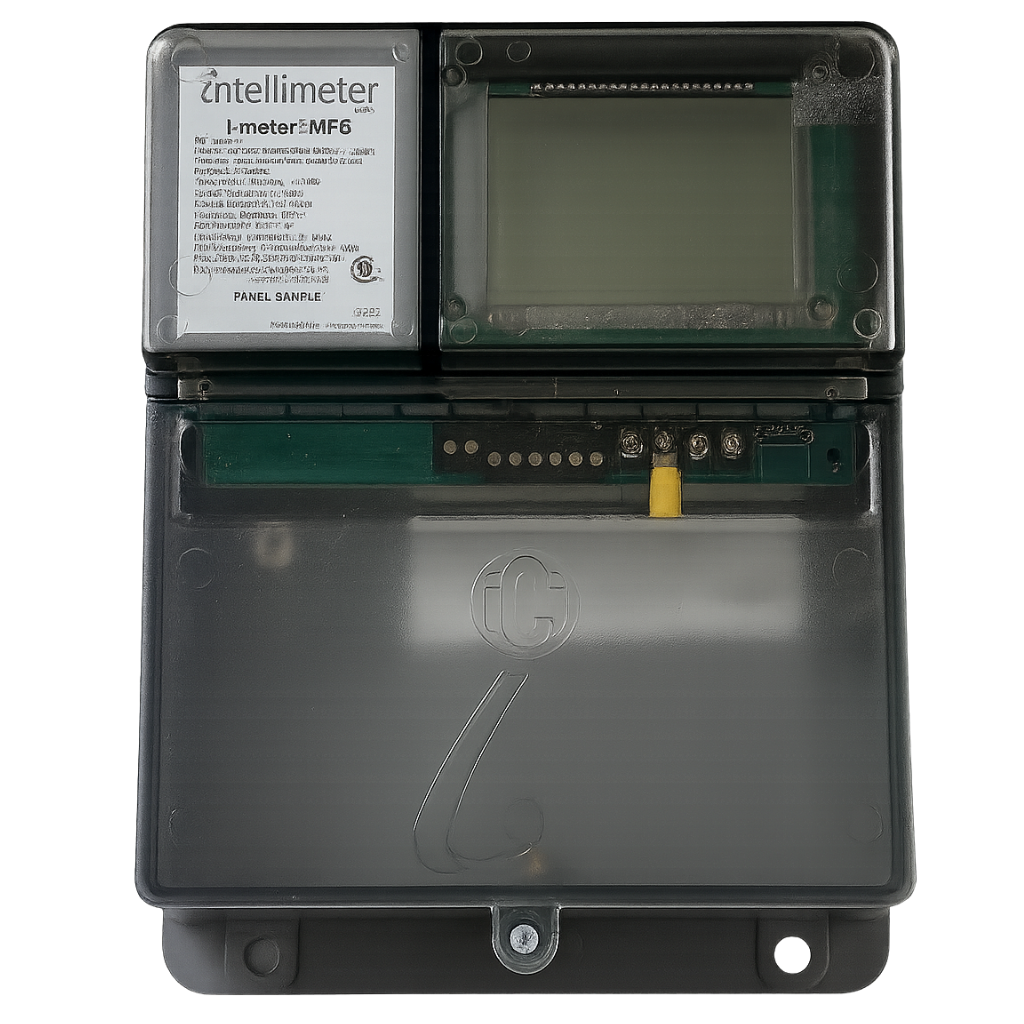

i-meter® MF Series 120/208V to 347/600V
SKU: ICI20-i-MF3-MOD-31
A proven meter to power your billing
Features
- Autoranging in voltage from 120V-347V L-N is ideal for most common LV distribution systems
- Self-Powered; NO need for a separate 120 Volt feed or separate power supply
- Self- Enclosed NEMA-1 rating - No need for an additional enclosure in indoor applications
- California CTEP, Measurement Canada Approved, and c-CSA-US approved
- Monitor multiple electrical loads from the same distribution panel up to 2 meters in the same enclosure
-
Flexible functionality: standalone or connected to a system through ModBus RS485
- Track your energy consumption , demand and earn valuable LEED points
- Displays shows energy consumption; kilo-watt hours, volts, amps per phase, power factor and frequency
- Flexible format to show rates, prices, date and time
- Communicate with other equipment using radio signals, MODBUS or Bacnet communications protocols
- Periodic collection and storage up to 45 days at 5-minute intervals
- Applications: Residential, Commercial, Industrial
- With a 10Wh per Pulse-Output
| Description | i-meter® MF 3 | i-meter® MF 6 |
| Dimensions Inches | 11H x 7W x 3.5D | |
| Dimensions Centimeters | 275H x 185W x 89D | |
| Mounting Options | Surface Mount | |
| # of Meters | 1 | 2 |
| Meter Elements (CTs) | 1 to 3 | 1 to 7 (with Neutral) |
| Voltage | Auto Ranging, 90 to 347 VAC (L-N) | |
| Service type: | 1Ø2W, 1Ø3W, 2Ø3W, 3Ø4W wye, 3Ø3W Delta* | |
| Current Transformers | 80/100 mA output | |
| Instrument Transformers Interface | Yes | |
| Memory | 45 days (5 min intervals) kWh | |
| Pulse Output | Wh/VAh | |
| Communications | MODBUS, RTU, Bacnet, MSTP, RF, Ethernet | |
| Frequency | 45 to 65Hz | |
| Accuracy Class | 0.5 | |
| Real Time Measurements | V, I, kW, kVA, PF, Hz, THD (V/I) | |
| Operating temperature | -10°C to +53°C | |
| Regulatory Compliance / Approvals | Measurement Canada, CSA (C/US), CTEP (CA), UL (Pending) | |
| Patent | U.S. Patent No. 8,049,487 | |
*Delta systems require potential transformers
