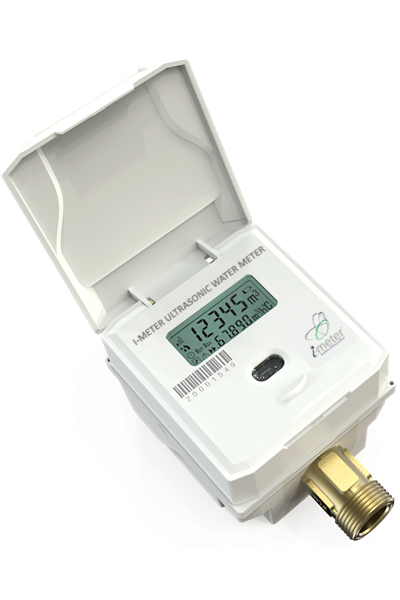

The new i-meter UWM can be installed horizontally or vertically without impacting its accuracy and is available for domestic cold water (T50℃) and domestic hot water (T70℃) services in 15, 20, and 25mm diameters.

Approved and certified under MID European standards and ISO 4064-4:2014.

All ultrasonic water meters are supplied with end pieces and follow NPT (National Pipes Thread).

Product Details

For DN 15-40:

• MID approval, R250, T50, class 2,
• Sampling 2 times/second, 1.6MPa, Δp40
• Battery life time:10 years
• LCD display: single screen display
• GB screw meters, with NPT coupling.

For DN 50-300:

• MID approval, S7 Series, R400,T50,Class 2,
• 1.6MPa, Δp25
• Battery life time:10 years
• Magnetic button, no light touch button,
• LCD display: single-screen display. Greyboard.
• DN50-DN100, Nudolar Iron Body with ANSI flange.Class 125
• Above DN150, Stainless Steel Body with carbon steel ANSI flange. Class 150
• The cable with the water box.
